设计模式 - 观察者

7. 观察者（Observer）

Intent

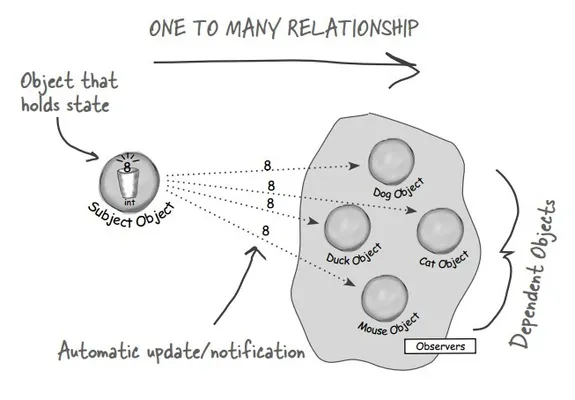

定义对象之间的一对多依赖，当一个对象状态改变时，它的所有依赖都会收到通知并且自动更新状态。

主题（Subject）是被观察的对象，而其所有依赖者（Observer）称为观察者。

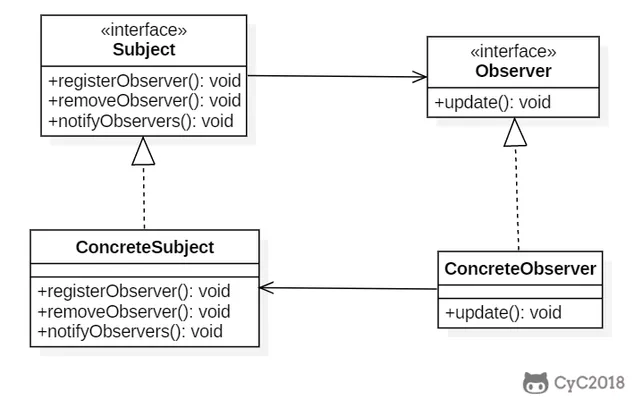

Class Diagram

主题（Subject）具有注册和移除观察者、并通知所有观察者的功能，主题是通过维护一张观察者列表来实现这些操作的。

观察者（Observer）的注册功能需要调用主题的 registerObserver() 方法。

Implementation

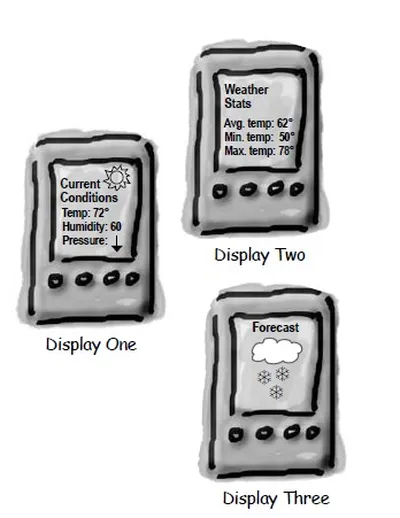

天气数据布告板会在天气信息发生改变时更新其内容，布告板有多个，并且在将来会继续增加。

public interface Subject {
    void registerObserver(Observer o);

    void removeObserver(Observer o);

    void notifyObserver();
}
​

public class WeatherData implements Subject {
    private List<Observer> observers;
    private float temperature;
    private float humidity;
    private float pressure;

    public WeatherData() {
        observers = new ArrayList<>();
    }

    public void setMeasurements(float temperature, float humidity, float pressure) {
        this.temperature = temperature;
        this.humidity = humidity;
        this.pressure = pressure;
        notifyObserver();
    }

    @Override
    public void registerObserver(Observer o) {
        observers.add(o);
    }

    @Override
    public void removeObserver(Observer o) {
        int i = observers.indexOf(o);
        if (i >= 0) {
            observers.remove(i);
        }
    }

    @Override
    public void notifyObserver() {
        for (Observer o : observers) {
            o.update(temperature, humidity, pressure);
        }
    }
}
​

public interface Observer {
    void update(float temp, float humidity, float pressure);
}
​

public class StatisticsDisplay implements Observer {

    public StatisticsDisplay(Subject weatherData) {
        weatherData.registerObserver(this);
    }

    @Override
    public void update(float temp, float humidity, float pressure) {
        System.out.println("StatisticsDisplay.update: " + temp + " " + humidity + " " + pressure);
    }
}
​

public class CurrentConditionsDisplay implements Observer {

    public CurrentConditionsDisplay(Subject weatherData) {
        weatherData.registerObserver(this);
    }

    @Override
    public void update(float temp, float humidity, float pressure) {
        System.out.println("CurrentConditionsDisplay.update: " + temp + " " + humidity + " " + pressure);
    }
}
​

public class WeatherStation {
    public static void main(String[] args) {
        WeatherData weatherData = new WeatherData();
        CurrentConditionsDisplay currentConditionsDisplay = new CurrentConditionsDisplay(weatherData);
        StatisticsDisplay statisticsDisplay = new StatisticsDisplay(weatherData);

        weatherData.setMeasurements(0, 0, 0);
        weatherData.setMeasurements(1, 1, 1);
    }
}
​

CurrentConditionsDisplay.update: 0.0 0.0 0.0
StatisticsDisplay.update: 0.0 0.0 0.0
CurrentConditionsDisplay.update: 1.0 1.0 1.0
StatisticsDisplay.update: 1.0 1.0 1.0
​

JDK

• java.util.Observer
• java.util.EventListener
• javax.servlet.http.HttpSessionBindingListener
• RxJava
