WTF Solidity极简入门: 40. ERC1155
我最近在重新学 Solidity，巩固一下细节，也写一个“WTF Solidity极简入门”，供小白们使用（编程大佬可以另找教程），每周更新 1-3 讲。
所有代码和教程开源在 github: github.com/AmazingAng/WTF-Solidity
这一讲，我们将学习ERC1155标准，它支持一个合约包含多种代币。并且，我们会发行一个魔改的无聊猿 - BAYC1155：它包含10,000种代币，且元数据与BAYC一致。
EIP1155
不论是ERC20还是ERC721标准，每个合约都对应一个独立的代币。假设我们要在以太坊上打造一个类似《魔兽世界》的大型游戏，这需要我们对每个装备都部署一个合约。上千种装备就要部署和管理上千个合约，这非常麻烦。因此，以太坊EIP1155提出了一个多代币标准ERC1155，允许一个合约包含多个同质化和非同质化代币。ERC1155在GameFi应用最多，Decentraland、Sandbox等知名链游都使用它。
简单来说，ERC1155与之前介绍的非同质化代币标准ERC721类似：在ERC721中，每个代币都有一个tokenId作为唯一标识，每个tokenId只对应一个代币；而在ERC1155中，每一种代币都有一个id作为唯一标识，每个id对应一种代币。这样，代币种类就可以非同质的在同一个合约里管理了，并且每种代币都有一个网址uri来存储它的元数据，类似ERC721的tokenURI。下面是ERC1155的元数据接口合约IERC1155MetadataURI：
/** * @dev ERC1155的可选接口，加入了uri()函数查询元数据 */ interface IERC1155MetadataURI is IERC1155 { /** * @dev 返回第`id`种类代币的URI */ function uri(uint256 id) external view returns (string memory);
那么怎么区分ERC1155中的某类代币是同质化还是非同质化代币呢？其实很简单：如果某个id对应的代币总量为1，那么它就是非同质化代币，类似ERC721；如果某个id对应的代币总量大于1，那么他就是同质化代币，因为这些代币都分享同一个id，类似ERC20。
IERC1155接口合约
IERC1155接口合约抽象了EIP1155需要实现的功能，其中包含4个事件和6个函数。与ERC721不同，因为ERC1155包含多类代币，它实现了批量转账和批量余额查询，一次操作多种代币。
// SPDX-License-Identifier: MIT pragma solidity ^0.8.0; import "https://github.com/AmazingAng/WTF-Solidity/blob/main/34_ERC721/IERC165.sol"; /** * @dev ERC1155标准的接口合约，实现了EIP1155的功能 * 详见：https://eips.ethereum.org/EIPS/eip-1155[EIP]. */ interface IERC1155 is IERC165 { /** * @dev 单类代币转账事件 * 当`value`个`id`种类的代币被`operator`从`from`转账到`to`时释放. */ event TransferSingle(address indexed operator, address indexed from, address indexed to, uint256 id, uint256 value); /** * @dev 批量代币转账事件 * ids和values为转账的代币种类和数量数组 */ event TransferBatch( address indexed operator, address indexed from, address indexed to, uint256[] ids, uint256[] values ); /** * @dev 批量授权事件 * 当`account`将所有代币授权给`operator`时释放 */ event ApprovalForAll(address indexed account, address indexed operator, bool approved); /** * @dev 当`id`种类的代币的URI发生变化时释放，`value`为新的URI */ event URI(string value, uint256 indexed id); /** * @dev 持仓查询，返回`account`拥有的`id`种类的代币的持仓量 */ function balanceOf(address account, uint256 id) external view returns (uint256); /** * @dev 批量持仓查询，`accounts`和`ids`数组的长度要想等。 */ function balanceOfBatch(address[] calldata accounts, uint256[] calldata ids) external view returns (uint256[] memory); /** * @dev 批量授权，将调用者的代币授权给`operator`地址。 * 释放{ApprovalForAll}事件. */ function setApprovalForAll(address operator, bool approved) external; /** * @dev 批量授权查询，如果授权地址`operator`被`account`授权，则返回`true` * 见 {setApprovalForAll}函数. */ function isApprovedForAll(address account, address operator) external view returns (bool); /** * @dev 安全转账，将`amount`单位`id`种类的代币从`from`转账给`to`. * 释放{TransferSingle}事件. * 要求: * - 如果调用者不是`from`地址而是授权地址，则需要得到`from`的授权 * - `from`地址必须有足够的持仓 * - 如果接收方是合约，需要实现`IERC1155Receiver`的`onERC1155Received`方法，并返回相应的值 */ function safeTransferFrom( address from, address to, uint256 id, uint256 amount, bytes calldata data ) external; /** * @dev 批量安全转账 * 释放{TransferBatch}事件 * 要求： * - `ids`和`amounts`长度相等 * - 如果接收方是合约，需要实现`IERC1155Receiver`的`onERC1155BatchReceived`方法，并返回相应的值 */ function safeBatchTransferFrom( address from, address to, uint256[] calldata ids, uint256[] calldata amounts, bytes calldata data ) external; }
IERC1155事件
TransferSingle事件：单类代币转账事件，在单币种转账时释放。TransferBatch事件：批量代币转账事件，在多币种转账时释放。ApprovalForAll事件：批量授权事件，在批量授权时释放。URI事件：元数据地址变更事件，在uri变化时释放。
IERC1155函数
balanceOf()：单币种余额查询，返回account拥有的id种类的代币的持仓量。balanceOfBatch()：多币种余额查询，查询的地址accounts数组和代币种类ids数组的长度要相等。setApprovalForAll()：批量授权，将调用者的代币授权给operator地址。。isApprovedForAll()：查询批量授权信息，如果授权地址operator被account授权，则返回true。safeTransferFrom()：安全单币转账，将amount单位id种类的代币从from地址转账给to地址。如果to地址是合约，则会验证是否实现了onERC1155Received()接收函数。safeBatchTransferFrom()：安全多币转账，与单币转账类似，只不过转账数量amounts和代币种类ids变为数组，且长度相等。如果to地址是合约，则会验证是否实现了onERC1155BatchReceived()接收函数。
ERC1155接收合约
与ERC721标准类似，为了避免代币被转入黑洞合约，ERC1155要求代币接收合约继承IERC1155Receiver并实现两个接收函数：
-
onERC1155Received()：单币转账接收函数，接受ERC1155安全转账safeTransferFrom需要实现并返回自己的选择器0xf23a6e61。 -
onERC1155BatchReceived()：多币转账接收函数，接受ERC1155安全多币转账safeBatchTransferFrom需要实现并返回自己的选择器0xbc197c81。
// SPDX-License-Identifier: MIT pragma solidity ^0.8.0; import "https://github.com/AmazingAng/WTF-Solidity/blob/main/34_ERC721/IERC165.sol"; /** * @dev ERC1155接收合约，要接受ERC1155的安全转账，需要实现这个合约 */ interface IERC1155Receiver is IERC165 { /** * @dev 接受ERC1155安全转账`safeTransferFrom` * 需要返回 0xf23a6e61 或 `bytes4(keccak256("onERC1155Received(address,address,uint256,uint256,bytes)"))` */ function onERC1155Received( address operator, address from, uint256 id, uint256 value, bytes calldata data ) external returns (bytes4); /** * @dev 接受ERC1155批量安全转账`safeBatchTransferFrom` * 需要返回 0xbc197c81 或 `bytes4(keccak256("onERC1155BatchReceived(address,address,uint256[],uint256[],bytes)"))` */ function onERC1155BatchReceived( address operator, address from, uint256[] calldata ids, uint256[] calldata values, bytes calldata data ) external returns (bytes4); }
ERC1155主合约
ERC1155主合约实现了IERC1155接口合约规定的函数，还有单币/多币的铸造和销毁函数。
ERC1155变量
ERC1155主合约包含4个状态变量：
name：代币名称symbol：代币代号_balances：代币持仓映射，记录代币种类id下某地址account的持仓量balances。_operatorApprovals：批量授权映射，记录持有地址给另一个地址的授权情况。
ERC1155函数
ERC1155主合约包含16个函数：
- 构造函数：初始化状态变量
name和symbol。 supportsInterface()：实现ERC165标准，声明它支持的接口，供其他合约检查。balanceOf()：实现IERC1155的balanceOf()，查询持仓量。与ERC721标准不同，这里需要输入查询的持仓地址account以及币种id。balanceOfBatch()：实现IERC1155的balanceOfBatch()，批量查询持仓量。setApprovalForAll()：实现IERC1155的setApprovalForAll()，批量授权，释放ApprovalForAll事件。isApprovedForAll()：实现IERC1155的isApprovedForAll()，查询批量授权信息。safeTransferFrom()：实现IERC1155的safeTransferFrom()，单币种安全转账，释放TransferSingle事件。与ERC721不同，这里不仅需要填发出方from，接收方to，代币种类id，还需要填转账数额amount。safeBatchTransferFrom()：实现IERC1155的safeBatchTransferFrom()，多币种安全转账，释放TransferBatch事件。_mint()：单币种铸造函数。_mintBatch()：多币种铸造函数。_burn()：单币种销毁函数。_burnBatch()：多币种销毁函数。_doSafeTransferAcceptanceCheck：单币种转账的安全检查，被safeTransferFrom()调用，确保接收方为合约的情况下，实现了onERC1155Received()函数。_doSafeBatchTransferAcceptanceCheck：多币种转账的安全检查，，被safeBatchTransferFrom调用，确保接收方为合约的情况下，实现了onERC1155BatchReceived()函数。uri()：返回ERC1155的第id种代币存储元数据的网址，类似ERC721的tokenURI。baseURI()：返回baseURI，uri就是把baseURI和id拼接在一起，需要开发重写。
// SPDX-License-Identifier: MIT pragma solidity ^0.8.0; import "./IERC1155.sol"; import "./IERC1155Receiver.sol"; import "./IERC1155MetadataURI.sol"; import "https://github.com/AmazingAng/WTF-Solidity/blob/main/34_ERC721/Address.sol"; import "https://github.com/AmazingAng/WTF-Solidity/blob/main/34_ERC721/String.sol"; import "https://github.com/AmazingAng/WTF-Solidity/blob/main/34_ERC721/IERC165.sol"; /** * @dev ERC1155多代币标准 * 见 https://eips.ethereum.org/EIPS/eip-1155 */ contract ERC1155 is IERC165, IERC1155, IERC1155MetadataURI { using Address for address; // 使用Address库，用isContract来判断地址是否为合约 using Strings for uint256; // 使用Strings库 // Token名称 string public name; // Token代号 string public symbol; // 代币种类id 到 账户account 到 余额balances 的映射 mapping(uint256 => mapping(address => uint256)) private _balances; // address 到 授权地址 的批量授权映射 mapping(address => mapping(address => bool)) private _operatorApprovals; /** * 构造函数，初始化`name` 和`symbol`, uri_ */ constructor(string memory name_, string memory symbol_) { name = name_; symbol = symbol_; } /** * @dev See {IERC165-supportsInterface}. */ function supportsInterface(bytes4 interfaceId) public view virtual override returns (bool) { return interfaceId == type(IERC1155).interfaceId || interfaceId == type(IERC1155MetadataURI).interfaceId || interfaceId == type(IERC165).interfaceId; } /** * @dev 持仓查询 实现IERC1155的balanceOf，返回account地址的id种类代币持仓量。 */ function balanceOf(address account, uint256 id) public view virtual override returns (uint256) { require(account != address(0), "ERC1155: address zero is not a valid owner"); return _balances[id][account]; } /** * @dev 批量持仓查询 * 要求: * - `accounts` 和 `ids` 数组长度相等. */ function balanceOfBatch(address[] memory accounts, uint256[] memory ids) public view virtual override returns (uint256[] memory) { require(accounts.length == ids.length, "ERC1155: accounts and ids length mismatch"); uint256[] memory batchBalances = new uint256[](accounts.length); for (uint256 i = 0; i < accounts.length; ++i) { batchBalances[i] = balanceOf(accounts[i], ids[i]); } return batchBalances; } /** * @dev 批量授权，调用者授权operator使用其所有代币 * 释放{ApprovalForAll}事件 * 条件：msg.sender != operator */ function setApprovalForAll(address operator, bool approved) public virtual override { require(msg.sender != operator, "ERC1155: setting approval status for self"); _operatorApprovals[msg.sender][operator] = approved; emit ApprovalForAll(msg.sender, operator, approved); } /** * @dev 查询批量授权. */ function isApprovedForAll(address account, address operator) public view virtual override returns (bool) { return _operatorApprovals[account][operator]; } /** * @dev 安全转账，将`amount`单位的`id`种类代币从`from`转账到`to` * 释放 {TransferSingle} 事件. * 要求: * - to 不能是0地址. * - from拥有足够的持仓量，且调用者拥有授权 * - 如果 to 是智能合约, 他必须支持 IERC1155Receiver-onERC1155Received. */ function safeTransferFrom( address from, address to, uint256 id, uint256 amount, bytes memory data ) public virtual override { address operator = msg.sender; // 调用者是持有者或是被授权 require( from == operator || isApprovedForAll(from, operator), "ERC1155: caller is not token owner nor approved" ); require(to != address(0), "ERC1155: transfer to the zero address"); // from地址有足够持仓 uint256 fromBalance = _balances[id][from]; require(fromBalance >= amount, "ERC1155: insufficient balance for transfer"); // 更新持仓量 unchecked { _balances[id][from] = fromBalance - amount; } _balances[id][to] += amount; // 释放事件 emit TransferSingle(operator, from, to, id, amount); // 安全检查 _doSafeTransferAcceptanceCheck(operator, from, to, id, amount, data); } /** * @dev 批量安全转账，将`amounts`数组单位的`ids`数组种类代币从`from`转账到`to` * 释放 {TransferSingle} 事件. * 要求: * - to 不能是0地址. * - from拥有足够的持仓量，且调用者拥有授权 * - 如果 to 是智能合约, 他必须支持 IERC1155Receiver-onERC1155BatchReceived. * - ids和amounts数组长度相等 */ function safeBatchTransferFrom( address from, address to, uint256[] memory ids, uint256[] memory amounts, bytes memory data ) public virtual override { address operator = msg.sender; // 调用者是持有者或是被授权 require( from == operator || isApprovedForAll(from, operator), "ERC1155: caller is not token owner nor approved" ); require(ids.length == amounts.length, "ERC1155: ids and amounts length mismatch"); require(to != address(0), "ERC1155: transfer to the zero address"); // 通过for循环更新持仓 for (uint256 i = 0; i < ids.length; ++i) { uint256 id = ids[i]; uint256 amount = amounts[i]; uint256 fromBalance = _balances[id][from]; require(fromBalance >= amount, "ERC1155: insufficient balance for transfer"); unchecked { _balances[id][from] = fromBalance - amount; } _balances[id][to] += amount; } emit TransferBatch(operator, from, to, ids, amounts); // 安全检查 _doSafeBatchTransferAcceptanceCheck(operator, from, to, ids, amounts, data); } /** * @dev 铸造 * 释放 {TransferSingle} 事件. */ function _mint( address to, uint256 id, uint256 amount, bytes memory data ) internal virtual { require(to != address(0), "ERC1155: mint to the zero address"); address operator = msg.sender; _balances[id][to] += amount; emit TransferSingle(operator, address(0), to, id, amount); _doSafeTransferAcceptanceCheck(operator, address(0), to, id, amount, data); } /** * @dev 批量铸造 * 释放 {TransferBatch} 事件. */ function _mintBatch( address to, uint256[] memory ids, uint256[] memory amounts, bytes memory data ) internal virtual { require(to != address(0), "ERC1155: mint to the zero address"); require(ids.length == amounts.length, "ERC1155: ids and amounts length mismatch"); address operator = msg.sender; for (uint256 i = 0; i < ids.length; i++) { _balances[ids[i]][to] += amounts[i]; } emit TransferBatch(operator, address(0), to, ids, amounts); _doSafeBatchTransferAcceptanceCheck(operator, address(0), to, ids, amounts, data); } /** * @dev 销毁 */ function _burn( address from, uint256 id, uint256 amount ) internal virtual { require(from != address(0), "ERC1155: burn from the zero address"); address operator = msg.sender; uint256 fromBalance = _balances[id][from]; require(fromBalance >= amount, "ERC1155: burn amount exceeds balance"); unchecked { _balances[id][from] = fromBalance - amount; } emit TransferSingle(operator, from, address(0), id, amount); } /** * @dev 批量销毁 */ function _burnBatch( address from, uint256[] memory ids, uint256[] memory amounts ) internal virtual { require(from != address(0), "ERC1155: burn from the zero address"); require(ids.length == amounts.length, "ERC1155: ids and amounts length mismatch"); address operator = msg.sender; for (uint256 i = 0; i < ids.length; i++) { uint256 id = ids[i]; uint256 amount = amounts[i]; uint256 fromBalance = _balances[id][from]; require(fromBalance >= amount, "ERC1155: burn amount exceeds balance"); unchecked { _balances[id][from] = fromBalance - amount; } } emit TransferBatch(operator, from, address(0), ids, amounts); } // @dev ERC1155的安全转账检查 function _doSafeTransferAcceptanceCheck( address operator, address from, address to, uint256 id, uint256 amount, bytes memory data ) private { if (to.isContract()) { try IERC1155Receiver(to).onERC1155Received(operator, from, id, amount, data) returns (bytes4 response) { if (response != IERC1155Receiver.onERC1155Received.selector) { revert("ERC1155: ERC1155Receiver rejected tokens"); } } catch Error(string memory reason) { revert(reason); } catch { revert("ERC1155: transfer to non-ERC1155Receiver implementer"); } } } // @dev ERC1155的批量安全转账检查 function _doSafeBatchTransferAcceptanceCheck( address operator, address from, address to, uint256[] memory ids, uint256[] memory amounts, bytes memory data ) private { if (to.isContract()) { try IERC1155Receiver(to).onERC1155BatchReceived(operator, from, ids, amounts, data) returns ( bytes4 response ) { if (response != IERC1155Receiver.onERC1155BatchReceived.selector) { revert("ERC1155: ERC1155Receiver rejected tokens"); } } catch Error(string memory reason) { revert(reason); } catch { revert("ERC1155: transfer to non-ERC1155Receiver implementer"); } } } /** * @dev 返回ERC1155的id种类代币的uri，存储metadata，类似ERC721的tokenURI. */ function uri(uint256 id) public view virtual override returns (string memory) { string memory baseURI = _baseURI(); return bytes(baseURI).length > 0 ? string(abi.encodePacked(baseURI, id.toString())) : ""; } /** * 计算{uri}的BaseURI，uri就是把baseURI和tokenId拼接在一起，需要开发重写. */ function _baseURI() internal view virtual returns (string memory) { return ""; } }
BAYC，但是ERC1155
我们魔改下ERC721标准的无聊猿BAYC，创建一个免费铸造的BAYC1155。我们修改_baseURI()函数，使得BAYC1155的uri和BAYC的tokenURI一样。这样，BAYC1155元数据会与无聊猿的相同：
// SPDX-License-Identifier: MIT // by 0xAA pragma solidity ^0.8.21; import "./ERC1155.sol"; contract BAYC1155 is ERC1155{ uint256 constant MAX_ID = 10000; // 构造函数 constructor() ERC1155("BAYC1155", "BAYC1155"){ } //BAYC的baseURI为ipfs://QmeSjSinHpPnmXmspMjwiXyN6zS4E9zccariGR3jxcaWtq/ function _baseURI() internal pure override returns (string memory) { return "ipfs://QmeSjSinHpPnmXmspMjwiXyN6zS4E9zccariGR3jxcaWtq/"; } // 铸造函数 function mint(address to, uint256 id, uint256 amount) external { // id 不能超过10,000 require(id < MAX_ID, "id overflow"); _mint(to, id, amount, ""); } // 批量铸造函数 function mintBatch(address to, uint256[] memory ids, uint256[] memory amounts) external { // id 不能超过10,000 for (uint256 i = 0; i < ids.length; i++) { require(ids[i] < MAX_ID, "id overflow"); } _mintBatch(to, ids, amounts, ""); } }
Remix演示

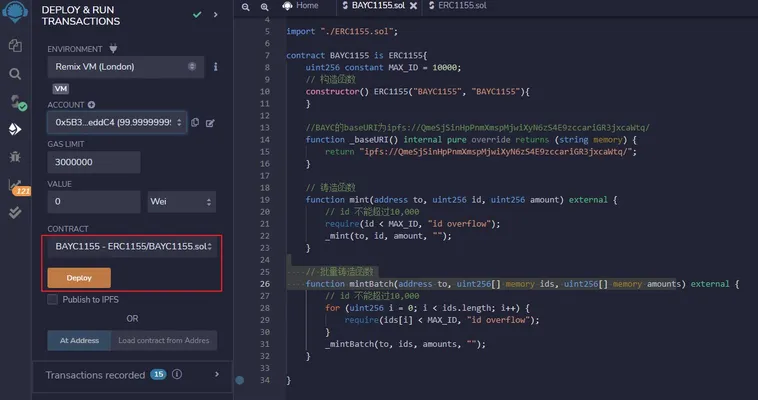

1. 部署BAYC1155合约

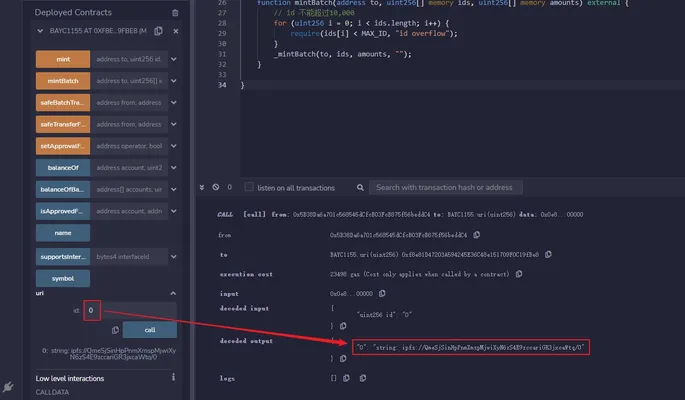

2. 查看元数据uri

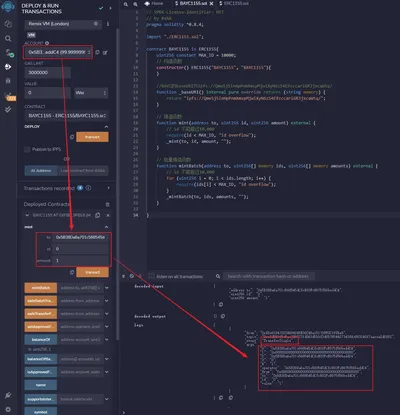

3. mint并查看持仓变化
mint一栏中输入账户地址、id和数量，点击mint按钮铸造。若数量为1，则为非同质化代币；若数量大于1，则为同质化代币。

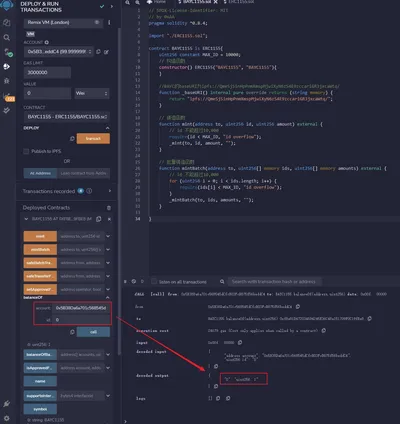

blanceOf一栏中输入账户地址和id查看对应持仓

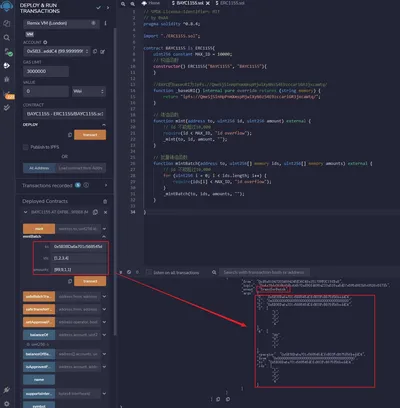

4. 批量mint并查看持仓变化
mintBatch一栏中输入要铸造的ids数组以及对应的数量，两者数组的长度必须相等

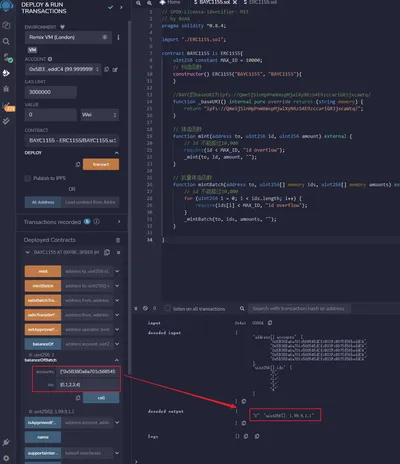

将刚刚铸造好的代币id数组输入即可查看

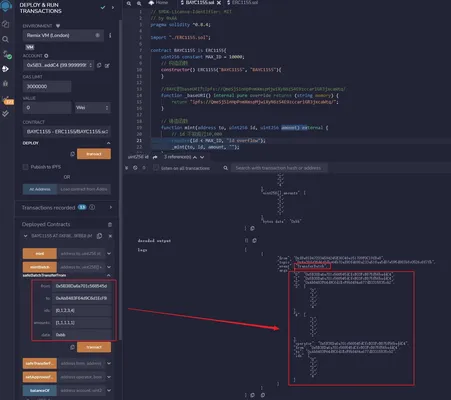

5. 批量转账并查看持仓变化
与铸造类似，不过这次要从拥有相应代币的地址转到一个新的地址，这个地址可以是普通地址也可以是合约地址，如果是合约地址会验证是否实现了onERC1155Received()接收函数。
这里我们转给一个普通地址，输入ids和amounts数组。

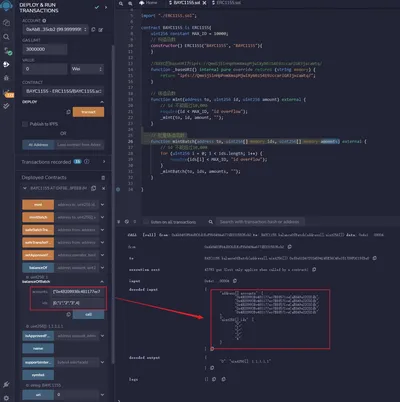

对刚才转入的地址查看其持仓变化。
总结
这一讲我们学习了以太坊EIP1155提出的ERC1155多代币标准，它允许一个合约中包含多个同质化或非同质化代币。并且，我们创建了魔改版无聊猿 - BAYC1155：一个包含10,000种代币且元数据与BAYC相同的ERC1155代币。目前，ERC1155主要应用于GameFi中。但我相信随着元宇宙技术不断发展，这个标准会越来越流行。
